Styling

Overview

3D Tiles styles provide concise declarative styling of tileset features. A style defines expressions to evaluate the display of a feature, for example color (RGB and translucency) and show properties, often based on the feature's properties stored in the tile's Batch Table.

A style may be applied to a tile that doesn't contain features, in which case the tile is treated as an implicit single feature without properties.

While a style may be created for and reference properties of a tileset, a style is independent of a tileset, such that any style can be applied to any tileset.

Styles are defined with JSON and expressions written in a small subset of JavaScript augmented for styling. Additionally, the styling language provides a set of built-in functions to support common math operations.

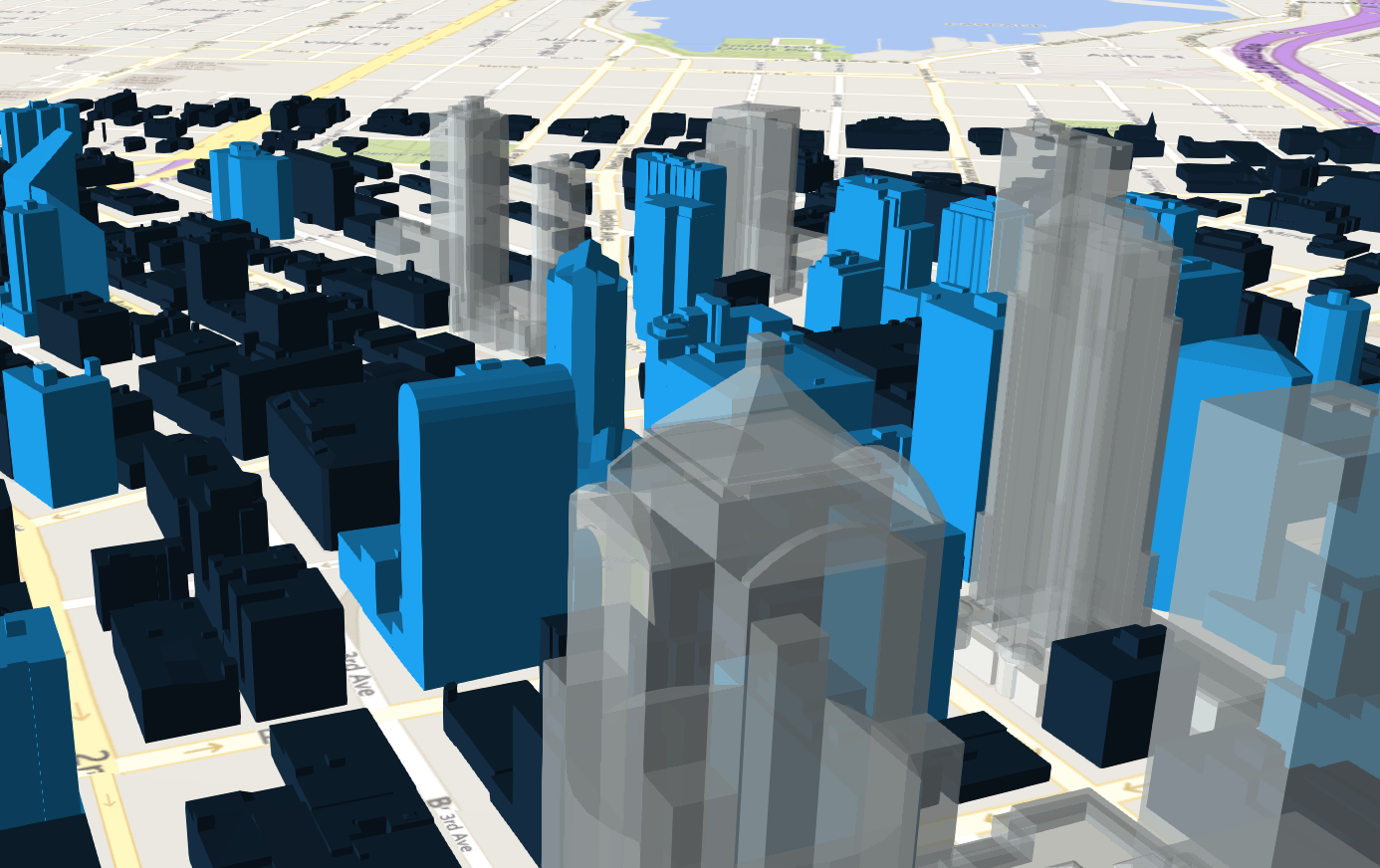

The following example assigns a color based on building height.

{
    "show" : "${Area} > 0",
    "color" : {
        "conditions" : [
            ["${Height} < 60", "color('#13293D')"],
            ["${Height} < 120", "color('#1B98E0')"],
            ["true", "color('#E8F1F2', 0.5)"]
        ]
    }
}

Concepts

Styling features

Visual properties available for styling features are the show property, the assigned expression of which will evaluate to a boolean that determines if the feature is visible, and the color property, the assigned expression of which will evaluate to a Color object (RGB and translucency) which determines the displayed color of a feature.

The following style assigns the default show and color properties to each feature:

{
    "show" : "true",
    "color" : "color('#ffffff')"
}

Instead of showing all features, show can be an expression dependent on a feature's properties, for example, the following expression will show only features in the 19341 zip code:

{
    "show" : "${ZipCode} === '19341'"
}

show can also be used for more complex queries; for example, here a compound condition and regular expression are used to show only features whose county starts with 'Chest' and whose year built is greater than or equal to 1970:

{
    "show" : "(regExp('^Chest').test(${County})) && (${YearBuilt} >= 1970)"
}

Colors can also be defined by expressions dependent on a feature's properties. For example, the following expression colors features with a temperature above 90 as red and the others as white:

{
    "color" : "(${Temperature} > 90) ? color('red') : color('white')"
}

The color's alpha component defines the feature's opacity. For example, the following sets the feature's RGB color components from the feature's properties and makes features with volume greater than 100 transparent:

{
   "color" : "rgba(${red}, ${green}, ${blue}, (${volume} > 100 ? 0.5 : 1.0))"
}

Conditions

In addition to a string containing an expression, color and show can be an array defining a series of conditions (similar to if...else statements). Conditions can, for example, be used to make color maps and color ramps with any type of inclusive/exclusive intervals.

For example, the following expression maps an ID property to colors. Conditions are evaluated in order, so if ${id} is not '1' or '2', the "true" condition returns white. If no conditions are met, the color of the feature will be undefined:

{
    "color" : {
        "conditions" : [
            ["${id} === '1'", "color('#FF0000')"],
            ["${id} === '2'", "color('#00FF00')"],
            ["true", "color('#FFFFFF')"]
        ]
    }
}

The next example shows how to use conditions to create a color ramp using intervals with an inclusive lower bound and exclusive upper bound:

"color" : {
    "conditions" : [
        ["(${Height} >= 1.0)  && (${Height} < 10.0)", "color('#FF00FF')"],
        ["(${Height} >= 10.0) && (${Height} < 30.0)", "color('#FF0000')"],
        ["(${Height} >= 30.0) && (${Height} < 50.0)", "color('#FFFF00')"],
        ["(${Height} >= 50.0) && (${Height} < 70.0)", "color('#00FF00')"],
        ["(${Height} >= 70.0) && (${Height} < 100.0)", "color('#00FFFF')"],
        ["(${Height} >= 100.0)", "color('#0000FF')"]
    ]
}

Since conditions are evaluated in order, the above can be written more concisely as the following:

"color" : {
    "conditions" : [
        ["(${Height} >= 100.0)", "color('#0000FF')"],
        ["(${Height} >= 70.0)", "color('#00FFFF')"],
        ["(${Height} >= 50.0)", "color('#00FF00')"],
        ["(${Height} >= 30.0)", "color('#FFFF00')"],
        ["(${Height} >= 10.0)", "color('#FF0000')"],
        ["(${Height} >= 1.0)", "color('#FF00FF')"]
    ]
}

Defining variables

Commonly used expressions may be stored in a defines object with a variable name as a key. If a variable references the name of a defined expression, it is replaced with the result of the referenced evaluated expression:

{
    "defines" : {
        "NewHeight" : "clamp((${Height} - 0.5) / 2.0, 1.0, 255.0)",
        "HeightColor" : "rgb(${Height}, ${Height}, ${Height})"
    },
    "color" : {
        "conditions" : [
            ["(${NewHeight} >= 100.0)", "color('#0000FF') * ${HeightColor}"],
            ["(${NewHeight} >= 50.0)", "color('#00FF00') * ${HeightColor}"],
            ["(${NewHeight} >= 1.0)", "color('#FF0000') * ${HeightColor}"]
        ]
    },
    "show" : "${NewHeight} < 200.0"
}

A define expression may not reference other defines; however, it may reference feature properties with the same name. In the style below a feature of height 150 gets the color red:

{
    "defines" : {
        "Height" : "${Height}/2.0}",
    },
    "color" : {
        "conditions" : [
            ["(${Height} >= 100.0)", "color('#0000FF')"],
            ["(${Height} >= 1.0)", "color('#FF0000')"]
        ]
    }
}

Meta property

Non-visual properties of a feature can be defined using the meta property. For example, the following sets a description meta property to a string containing the feature name:

{
    "meta" : {
        "description" : "'Hello, ${featureName}.'"
    }
}

A meta property expression can evaluate to any type. For example:

{
    "meta" : {
        "featureColor" : "rgb(${red}, ${green}, ${blue})",
        "featureVolume" : "${height} * ${width} * ${depth}"
    }
}

Expressions

The language for expressions is a small subset of JavaScript (EMCAScript 5 (opens new window)), plus native vector and regular expression types and access to tileset feature properties in the form of readonly variables.

Implementation Note: Joint3d uses the jsep (opens new window) JavaScript expression parser library to parse style expressions into an abstract syntax tree (AST) (opens new window).

Semantics

Dot notation is used to access properties by name, e.g., building.name.

Bracket notation ([]) is also used to access properties, e.g., building['name'], or arrays, e.g., temperatures[1].

Functions are called with parenthesis (()) and comma-separated arguments, e.g., (isNaN(0.0), color('cyan', 0.5)).

Operators

The following operators are supported with the same semantics and precedence as JavaScript.

• Unary: +, -, !
  • Not supported: ~
• Binary: ||, &&, ===, !==, <, >, <=, >=, +, -, *, /, %, =~, !~
  • Not supported: |, ^, &, <<, >>, and >>>
• Ternary: ? :

( and ) are also supported for grouping expressions for clarity and precedence.

Logical || and && implement short-circuiting; true || expression does not evaluate the right expression, and false && expression does not evaluate the right expression.

Similarly, true ? leftExpression : rightExpression only executes the left expression, and false ? leftExpression : rightExpression only executes the right expression.

Types

The following types are supported:

• Boolean
• Null
• Undefined
• Number
• String
• Array
• vec2
• vec3
• vec4
• RegExp

All of the types except vec2, vec3, vec4, and RegExp have the same syntax and runtime behavior as JavaScript. vec2, vec3, and vec4 are derived from GLSL vectors and behave similarly to JavaScript Object (see the Vector section). Colors derive from CSS3 Colors (opens new window) and are implemented as vec4. RegExp is derived from JavaScript and described in the RegExp section.

Example expressions for different types include the following:

• true, false
• null
• undefined
• 1.0, NaN, Infinity
• 'Joint3d', "Joint3d"
• [0, 1, 2]
• vec2(1.0, 2.0)
• vec3(1.0, 2.0, 3.0)
• vec4(1.0, 2.0, 3.0, 4.0)
• color('#00FFFF')
• regExp('^Chest'))

Number

As in JavaScript, numbers can be NaN or Infinity. The following test functions are supported:

• isNaN(testValue : Number) : Boolean
• isFinite(testValue : Number) : Boolean

String

Strings are encoded in UTF-8.

Vector

The styling language includes 2, 3, and 4 component floating-point vector types: vec2, vec3, and vec4. Vector constructors share the same rules as GLSL:

vec2

• vec2(xy : Number) - initialize each component with the number
• vec2(x : Number, y : Number) - initialize with two numbers
• vec2(xy : vec2) - initialize with another vec2
• vec2(xyz : vec3) - drops the third component of a vec3
• vec2(xyzw : vec4) - drops the third and fourth component of a vec4

vec3

• vec3(xyz : Number) - initialize each component with the number
• vec3(x : Number, y : Number, z : Number) - initialize with three numbers
• vec3(xyz : vec3) - initialize with another vec3
• vec3(xyzw : vec4) - drops the fourth component of a vec4
• vec3(xy : vec2, z : Number) - initialize with a vec2 and number
• vec3(x : Number, yz : vec2) - initialize with a vec2 and number

vec4

• vec4(xyzw : Number) - initialize each component with the number
• vec4(x : Number, y : Number, z : Number, w : Number) - initialize with four numbers
• vec4(xyzw : vec4) - initialize with another vec4
• vec4(xy : vec2, z : Number, w : Number) - initialize with a vec2 and two numbers
• vec4(x : Number, yz : vec2, w : Number) - initialize with a vec2 and two numbers
• vec4(x : Number, y : Number, zw : vec2) - initialize with a vec2 and two numbers
• vec4(xyz : vec3, w : Number) - initialize with a vec3 and number
• vec4(x : Number, yzw : vec3) - initialize with a vec3 and number

Vector usage

vec2 components may be accessed with

• .x, .y
• .r, .g
• [0], [1]

vec3 components may be accessed with

• .x, .y, .z
• .r, .g, .b
• [0], [1], [2]

vec4 components may be accessed with

• .x, .y, .z, .w
• .r, .g, .b, .a
• [0], [1], [2], [3]

Unlike GLSL, the styling language does not support swizzling. For example, vec3(1.0).xy is not supported.

Vectors support the following unary operators: -, +.

Vectors support the following binary operators by performing component-wise operations: ===, !==, +, -, *, /, and %. For example vec4(1.0) === vec4(1.0) is true since the x, y, z, and w components are equal. Operators are essentially overloaded for vec2, vec3, and vec4.

vec2, vec3, and vec4 have a toString function for explicit (and implicit) conversion to strings in the format '(x, y)', '(x, y, z)', and '(x, y, z, w)'.

• toString() : String

vec2, vec3, and vec4 do not expose any other functions or a prototype object.

Color

Colors are implemented as vec4 and are created with one of the following functions:

• color()
• color(keyword : String, [alpha : Number])
• color(6-digit-hex : String, [alpha : Number])
• color(3-digit-hex : String, [alpha : Number])
• rgb(red : Number, green : Number, blue : Number)
• rgba(red : Number, green : Number, blue : Number, alpha : Number)
• hsl(hue : Number, saturation : Number, lightness : Number)
• hsla(hue : Number, saturation : Number, lightness : Number, alpha : Number)

Calling color() with no arguments is the same as calling color('#FFFFFF').

Colors defined by a case-insensitive keyword (e.g., 'cyan') or hex rgb are passed as strings to the color function. For example:

• color('cyan')
• color('#00FFFF')
• color('#0FF')

These color functions have an optional second argument that is an alpha component to define opacity, where 0.0 is fully transparent and 1.0 is fully opaque. For example:

• color('cyan', 0.5)

Colors defined with decimal RGB or HSL are created with rgb and hsl functions, respectively, just as in CSS (but with percentage ranges from 0.0 to 1.0 for 0% to 100%, respectively). For example:

• rgb(100, 255, 190)
• hsl(1.0, 0.6, 0.7)

The range for rgb components is 0 to 255, inclusive. For hsl, the range for hue, saturation, and lightness is 0.0 to 1.0, inclusive.

Colors defined with rgba or hsla have a fourth argument that is an alpha component to define opacity, where 0.0 is fully transparent and 1.0 is fully opaque. For example:

• rgba(100, 255, 190, 0.25)
• hsla(1.0, 0.6, 0.7, 0.75)

Colors are equivalent to the vec4 type and share the same functions, operators, and component accessors. Color components are stored in the range 0.0 to 1.0.

For example:

• color('red').x, color('red').r, and color('red')[0] all evaluate to 1.0.
• color('red').toString() evaluates to (1.0, 0.0, 0.0, 1.0)
• color('red') * vec4(0.5) is equivalent to vec4(0.5, 0.0, 0.0, 0.5)

RegExp

Regular expressions are created with the following functions, which behave like the JavaScript RegExp (opens new window) constructor:

• regExp()
• regExp(pattern : String, [flags : String])

Calling regExp() with no arguments is the same as calling regExp('(?:)').

If specified, flags can have any combination of the following values:

• g - global match
• i - ignore case
• m - multiline
• u - unicode
• y- sticky

Regular expressions support these functions:

• test(string : String) : Boolean - Tests the specified string for a match.
• exec(string : String) : String - Executes a search for a match in the specified string. If the search succeeds, it returns the first instance of a captured String. If the search fails, it returns null.

For example:

{
    "Name" : "Building 1"
}

regExp('a').test('abc') === true
regExp('a(.)', 'i').exec('Abc') === 'b'
regExp('Building\s(\d)').exec(${Name}) === '1'

Regular expressions have a toString function for explicit (and implicit) conversion to strings in the format 'pattern':

• toString() : String

Regular expressions do not expose any other functions or a prototype object.

The operators =~ and !~ are overloaded for regular expressions. The =~ operator matches the behavior of the test function, and tests the specified string for a match. It returns true if one is found, and false if not found. The !~ operator is the inverse of the =~ operator. It returns true if no matches are found, and false if a match is found. Both operators are commutative.

For example, the following expressions all evaluate to true:

regExp('a') =~ 'abc'
'abc' =~ regExp('a')

regExp('a') !~ 'bcd'
'bcd' !~ regExp('a')

Operator rules

• Unary operators + and - operate only on number and vector expressions.
• Unary operator ! operates only on boolean expressions.
• Binary operators <, <=, >, and >= operate only on number expressions.
• Binary operators || and && operate only on boolean expressions.
• Binary operator + operates on the following expressions:
  • Number expressions
  • Vector expressions of the same type
  • If at least one expressions is a string, the other expression is converted to a string following String Conversions, and the operation returns a concatenated string, e.g. "name" + 10 evaluates to "name10"
• Binary operator - operates on the following expressions:
  • Number expressions
  • Vector expressions of the same type
• Binary operator * operates on the following expressions:
  • Number expressions
  • Vector expressions of the same type
  • Mix of number expression and vector expression, e.g. 3 * vec3(1.0) and vec2(1.0) * 3
• Binary operator / operates on the following expressions:
  • Number expressions
  • Vector expressions of the same type
  • Vector expression followed by number expression, e.g.vec3(1.0) / 3
• Binary operator % operates on the following expressions:
  • Number expressions
  • Vector expressions of the same type
• Binary equality operators === and !== operate on any expressions. The operation returns false if the expression types do not match.
• Binary regExp operators =~ and !~ require one argument to be a string expression and the other to be a RegExp expression.
• Ternary operator ? : conditional argument must be a boolean expression.

Type conversions

Explicit conversions between primitive types are handled with Boolean, Number, and String functions.

• Boolean(value : Any) : Boolean
• Number(value : Any) : Number
• String(value : Any) : String

For example:

Boolean(1) === true
Number('1') === 1
String(1) === '1'

Boolean and Number follow JavaScript conventions. String follows String Conversions.

These are essentially casts, not constructor functions.

The styling language does not allow for implicit type conversions, unless stated above. Expressions like vec3(1.0) === vec4(1.0) and "5" < 6 are not valid.

String conversions

vec2, vec3, vec4, and RegExp expressions are converted to strings using their toString methods. All other types follow JavaScript conventions.

• true - "true"
• false - "false"
• null - "null"
• undefined - "undefined"
• 5.0 - "5"
• NaN - "NaN"
• Infinity - "Infinity"
• "name" - "name"
• [0, 1, 2] - "[0, 1, 2]"
• vec2(1, 2) - "(1, 2)"
• vec3(1, 2, 3) - "(1, 2, 3)"
• vec4(1, 2, 3, 4) - "(1, 2, 3, 4)"
• RegExp('a') - "/a/"

Constants

The following constants are supported by the styling language:

• Math.PI
• Math.E

PI

The mathematical constant PI, which represents a circle's circumference divided by its diameter, approximately 3.14159.

{
    "show" : "cos(${Angle} + Math.PI) < 0"
}

E

Euler's constant and the base of the natural logarithm, approximately 2.71828.

{
    "color" : "color() * pow(Math.E / 2.0, ${Temperature})"
}

Variables

Variables are used to retrieve the property values of individual features in a tileset. Variables are identified using the ES 6 (ECMAScript 2015 (opens new window)) template literal syntax, i.e., ${feature.identifier} or ${feature['identifier']}, where the identifier is the case-sensitive property name. Variable names are encoded in UTF-8. feature is implicit and can be omitted in most cases. If the identifier contains non-alphanumeric characters, such as :, -, #, or spaces, the ${feature['identifier']} form should be used.

Variables can be used anywhere a valid expression is accepted, except inside other variable identifiers. For example, the following is not allowed:

${foo[${bar}]}

If a feature does not have a property with the specified name, the variable evaluates to undefined. Note that the property may also be null if null was explicitly stored for a property.

Variables may be any of the supported native JavaScript types:

• Boolean
• Null
• Undefined
• Number
• String
• Array

For example:

{
    "enabled" : true,
    "description" : null,
    "order" : 1,
    "name" : "Feature name"
}

${enabled} === true
${description} === null
${order} === 1
${name} === 'Feature name'

Additionally, variables originating from vector properties stored in the Batch Table binary are treated as vector types:

componentType	variable type
"VEC2"	vec2
"VEC3"	vec3
"VEC4"	vec4

Variables can be used to construct colors or vectors. For example:

rgba(${red}, ${green}, ${blue}, ${alpha})
vec4(${temperature})

Dot or bracket notation is used to access feature subproperties. For example:

{
    "address" : {
        "street" : "Example street",
        "city" : "Example city"
    }
}

${address.street} === `Example street`
${address['street']} === `Example street`

${address.city} === `Example city`
${address['city']} === `Example city`

Bracket notation supports only string literals.

Top-level properties can be accessed with bracket notation by explicitly using the feature keyword. For example:

{
    "address.street" : "Maple Street",
    "address" : {
        "street" : "Oak Street"
    }
}

${address.street} === `Oak Street`
${feature.address.street} === `Oak Street`
${feature['address'].street} === `Oak Street`
${feature['address.street']} === `Maple Street`

To access a feature named feature, use the variable ${feature}. This is equivalent to accessing ${feature.feature}

{
    "feature" : "building"
}

${feature} === `building`
${feature.feature} === `building`

Variables can also be substituted inside strings defined with backticks, for example:

{
    "order" : 1,
    "name" : "Feature name"
}

`Name is ${name}, order is ${order}`

Bracket notation is used to access feature subproperties or arrays. For example:

{
    "temperatures" : {
        "scale" : "fahrenheit",
        "values" : [70, 80, 90]
    }
}

${temperatures['scale']} === 'fahrenheit'
${temperatures.values[0]} === 70
${temperatures['values'][0]} === 70 // Same as (temperatures[values])[0] and temperatures.values[0]

Built-in functions

The following built-in functions are supported by the styling language:

• abs
• sqrt
• cos
• sin
• tan
• acos
• asin
• atan
• atan2
• radians
• degrees
• sign
• floor
• ceil
• round
• exp
• log
• exp2
• log2
• fract
• pow
• min
• max
• clamp
• mix
• length
• distance
• normalize
• dot
• cross

Many of the built-in functions take either scalars or vectors as arguments. For vector arguments the function is applied component-wise and the resulting vector is returned.

abs

abs(x : Number) : Number
abs(x : vec2) : vec2
abs(x : vec3) : vec3
abs(x : vec4) : vec4

Returns the absolute value of x.

{
    "show" : "abs(${temperature}) > 20.0"
}

sqrt

sqrt(x : Number) : Number
sqrt(x : vec2) : vec2
sqrt(x : vec3) : vec3
sqrt(x : vec4) : vec4

Returns the square root of x when x >= 0. Returns NaN when x < 0.

{
    "color" : {
        "conditions" : [
            ["${temperature} >= 0.5", "color('#00FFFF')"],
            ["${temperature} >= 0.0", "color('#FF00FF')"]
        ]
    }
}

cos

cos(angle : Number) : Number
cos(angle : vec2) : vec2
cos(angle : vec3) : vec3
cos(angle : vec4) : vec4

Returns the cosine of angle in radians.

{
    "show" : "cos(${Angle}) > 0.0"
}

sin

sin(angle : Number) : Number
sin(angle : vec2) : vec2
sin(angle : vec3) : vec3
sin(angle : vec4) : vec4

Returns the sine of angle in radians.

{
    "show" : "sin(${Angle}) > 0.0"
}

tan

tan(angle : Number) : Number
tan(angle : vec2) : vec2
tan(angle : vec3) : vec3
tan(angle : vec4) : vec4

Returns the tangent of angle in radians.

{
    "show" : "tan(${Angle}) > 0.0"
}

acos

acos(angle : Number) : Number
acos(angle : vec2) : vec2
acos(angle : vec3) : vec3
acos(angle : vec4) : vec4

Returns the arccosine of angle in radians.

{
    "show" : "acos(${Angle}) > 0.0"
}

asin

asin(angle : Number) : Number
asin(angle : vec2) : vec2
asin(angle : vec3) : vec3
asin(angle : vec4) : vec4

Returns the arcsine of angle in radians.

{
    "show" : "asin(${Angle}) > 0.0"
}

atan

atan(angle : Number) : Number
atan(angle : vec2) : vec2
atan(angle : vec3) : vec3
atan(angle : vec4) : vec4

Returns the arctangent of angle in radians.

{
    "show" : "atan(${Angle}) > 0.0"
}

atan2

atan2(y : Number, x : Number) : Number
atan2(y : vec2, x : vec2) : vec2
atan2(y : vec3, x : vec3) : vec3
atan2(y : vec4, x : vec4) : vec4

Returns the arctangent of the quotient of y and x.

{
    "show" : "atan2(${GridY}, ${GridX}) > 0.0"
}

radians

radians(angle : Number) : Number
radians(angle : vec2) : vec2
radians(angle : vec3) : vec3
radians(angle : vec4) : vec4

Converts angle from degrees to radians.

{
    "show" : "radians(${Angle}) > 0.5"
}

degrees

degrees(angle : Number) : Number
degrees(angle : vec2) : vec2
degrees(angle : vec3) : vec3
degrees(angle : vec4) : vec4

Converts angle from radians to degrees.

{
    "show" : "degrees(${Angle}) > 45.0"
}

sign

sign(x : Number) : Number
sign(x : vec2) : vec2
sign(x : vec3) : vec3
sign(x : vec4) : vec4

Returns 1.0 when x is positive, 0.0 when x is zero, and -1.0 when x is negative.

{
    "show" : "sign(${Temperature}) * sign(${Velocity}) === 1.0"
}

floor

floor(x : Number) : Number
floor(x : vec2) : vec2
floor(x : vec3) : vec3
floor(x : vec4) : vec4

Returns the nearest integer less than or equal to x.

{
    "show" : "floor(${Position}) === 0"
}

ceil

ceil(x : Number) : Number
ceil(x : vec2) : vec2
ceil(x : vec3) : vec3
ceil(x : vec4) : vec4

Returns the nearest integer greater than or equal to x.

{
    "show" : "ceil(${Position}) === 1"
}

round

round(x : Number) : Number
round(x : vec2) : vec2
round(x : vec3) : vec3
round(x : vec4) : vec4

Returns the nearest integer to x. A number with a fraction of 0.5 will round in an implementation-defined direction.

{
    "show" : "round(${Position}) === 1"
}

exp

exp(x : Number) : Number
exp(x : vec2) : vec2
exp(x : vec3) : vec3
exp(x : vec4) : vec4

Returns e to the power of x, where e is Euler's constant, approximately 2.71828.

{
    "show" : "exp(${Density}) > 1.0"
}

log

log(x : Number) : Number
log(x : vec2) : vec2
log(x : vec3) : vec3
log(x : vec4) : vec4

Returns the natural logarithm (base e) of x.

{
    "show" : "log(${Density}) > 1.0"
}

exp2

exp2(x : Number) : Number
exp2(x : vec2) : vec2
exp2(x : vec3) : vec3
exp2(x : vec4) : vec4

Returns 2 to the power of x.

{
    "show" : "exp2(${Density}) > 1.0"
}

log2

log2(x : Number) : Number
log2(x : vec2) : vec2
log2(x : vec3) : vec3
log2(x : vec4) : vec4

Returns the base 2 logarithm of x.

{
    "show" : "log2(${Density}) > 1.0"
}

fract

fract(x : Number) : Number
fract(x : vec2) : vec2
fract(x : vec3) : vec3
fract(x : vec4) : vec4

Returns the fractional part of x. Equivalent to x - floor(x).

{
    "color" : "color() * fract(${Density})"
}

pow

pow(base : Number, exponent : Number) : Number
pow(base : vec2, exponent : vec2) : vec2
pow(base : vec3, exponent : vec3) : vec3
pow(base : vec4, exponent : vec4) : vec4

Returns base raised to the power of exponent.

{
    "show" : "pow(${Density}, ${Temperature}) > 1.0"
}

min

min(x : Number, y : Number) : Number
min(x : vec2, y : vec2) : vec2
min(x : vec3, y : vec3) : vec3
min(x : vec4, y : vec4) : vec4

min(x : Number, y : Number) : Number
min(x : vec2, y : Number) : vec2
min(x : vec3, y : Number) : vec3
min(x : vec4, y : Number) : vec4

Returns the smaller of x and y.

{
    "show" : "min(${Width}, ${Height}) > 10.0"
}

max

max(x : Number, y : Number) : Number
max(x : vec2, y : vec2) : vec2
max(x : vec3, y : vec3) : vec3
max(x : vec4, y : vec4) : vec4

max(x : Number, y : Number) : Number
max(x : vec2, y : Number) : vec2
max(x : vec3, y : Number) : vec3
max(x : vec4, y : Number) : vec4

Returns the larger of x and y.

{
    "show" : "max(${Width}, ${Height}) > 10.0"
}

clamp

clamp(x : Number,  min : Number, max : Number) : Number
clamp(x : vec2,  min : vec2, max : vec2) : vec2
clamp(x : vec3,  min : vec3, max : vec3) : vec3
clamp(x : vec4,  min : vec4, max : vec4) : vec4

clamp(x : Number,  min : Number, max : Number) : Number
clamp(x : vec2,  min : Number, max : Number) : vec2
clamp(x : vec3,  min : Number, max : Number) : vec3
clamp(x : vec4,  min : Number, max : Number) : vec4

Constrains x to lie between min and max.

{
    "color" : "color() * clamp(${temperature}, 0.1, 0.2)"
}

mix

mix(x : Number,  y : Number, a : Number) : Number
mix(x : vec2,  y : vec2, a : vec2) : vec2
mix(x : vec3,  y : vec3, a : vec3) : vec3
mix(x : vec4,  y : vec4, a : vec4) : vec4

mix(x : Number,  y : Number, a : Number) : Number
mix(x : vec2,  y : vec2, a : Number) : vec2
mix(x : vec3,  y : vec3, a : Number) : vec3
mix(x : vec4,  y : vec4, a : Number) : vec4

Computes the linear interpolation of x and y.

{
    "show" : "mix(20.0, ${Angle}, 0.5) > 25.0"
}

length

length(x : Number) : Number
length(x : vec2) : vec2
length(x : vec3) : vec3
length(x : vec4) : vec4

Computes the length of vector x, i.e., the square root of the sum of the squared components. If x is a number, length returns x.

{
    "show" : "length(${Dimensions}) > 10.0"
}

distance

distance(x : Number, y : Number) : Number
distance(x : vec2, y : vec2) : vec2
distance(x : vec3, y : vec3) : vec3
distance(x : vec4, y : vec4) : vec4

Computes the distance between two points x and y, i.e., length(x - y).

{
    "show" : "distance(${BottomRight}, ${UpperLeft}) > 50.0"
}

normalize

normalize(x : Number) : Number
normalize(x : vec2) : vec2
normalize(x : vec3) : vec3
normalize(x : vec4) : vec4

Returns a vector with length 1.0 that is parallel to x. When x is a number, normalize returns 1.0.

{
    "show" : "normalize(${RightVector}, ${UpVector}) > 0.5"
}

dot

dot(x : Number, y : Number) : Number
dot(x : vec2, y : vec2) : vec2
dot(x : vec3, y : vec3) : vec3
dot(x : vec4, y : vec4) : vec4

Computes the dot product of x and y.

{
    "show" : "dot(${RightVector}, ${UpVector}) > 0.5"
}

cross

cross(x : vec3, y : vec3) : vec3

Computes the cross product of x and y. This function only accepts vec3 arguments.

{
    "color" : "vec4(cross(${RightVector}, ${UpVector}), 1.0)"
}

Notes

Comments are not supported.

Point Cloud

A Point Cloud is a collection of points that may be styled like other features. In addition to evaluating a point's color and show properties, a Point Cloud style may evaluate pointSize, or the size of each point in pixels. The default pointSize is 1.0.

{
    "color" : "color('red')",
    "pointSize" : "${Temperature} * 0.5"
}

Implementations may clamp the evaluated pointSize to the system's supported point size range. For example, WebGL renderers may query ALIASED_POINT_SIZE_RANGE to get the system limits when rendering with POINTS. A pointSize of 1.0 must be supported.

Point Cloud styles may also reference semantics from the Feature Table including position, color, and normal to allow for more flexible styling of the source data.

• ${POSITION} is a vec3 storing the xyz Cartesian coordinates of the point before the RTC_CENTER and tile transform are applied. When the positions are quantized, ${POSITION} refers to the position after the QUANTIZED_VOLUME_SCALE is applied, but before QUANTIZED_VOLUME_OFFSET is applied.
• ${POSITION_ABSOLUTE} is a vec3 storing the xyz Cartesian coordinates of the point after the RTC_CENTER and tile transform are applied. When the positions are quantized, ${POSITION_ABSOLUTE} refers to the position after the QUANTIZED_VOLUME_SCALE, QUANTIZED_VOLUME_OFFSET, and tile transform are applied.
• ${COLOR} evaluates to a Color storing the rgba color of the point. When the Feature Table's color semantic is RGB or RGB565, ${COLOR}.alpha is 1.0. If no color semantic is defined, ${COLOR} evaluates to the application-specific default color.
• ${NORMAL} is a vec3 storing the normal, in Cartesian coordinates, of the point before the tile transform is applied. When normals are oct-encoded, ${NORMAL} refers to the decoded normal. If no normal semantic is defined in the Feature Table, ${NORMAL} evaluates to undefined.

For example:

{
    "color" : "${COLOR} * color('red')'",
    "show" : "${POSITION}.x > 0.5",
    "pointSize" : "${NORMAL}.x > 0 ? 2 : 1"
}

Implementation Note: Point cloud styling engines may often use a shader (GLSL) implementation, however some features of the expression language are not possible in pure a GLSL implementation. Some of these features include:

• Evaluation of isNaN and isFinite (GLSL 2.0+ supports isnan and isinf for these functions respectively)
• The types null and undefined
• Strings, including accessing object properties (color()['r']) and batch table values
• Regular expressions
• Arrays of lengths other than 2, 3, or 4
• Mismatched type comparisons (e.g. 1.0 === false)
• Array index out of bounds

File extension and MIME type

Tileset styles use the .json extension and the application/json mime type.

Property reference

• style
  • boolean expression
  • color expression
  • conditions
    • condition
  • expression
  • meta
  • number expression
• Point Cloud Style

---

style

A 3D Tiles style.

Properties

	Type	Description	Required
defines	object	A dictionary object of expression strings mapped to a variable name key that may be referenced throughout the style. If an expression references a defined variable, it is replaced with the evaluated result of the corresponding expression.	No
show	boolean, string, object	A boolean expression or conditions property which determines if a feature should be shown.	No, default: true
color	string, object	A color expression or conditions property which determines the color blended with the feature's intrinsic color.	No, default: color('#FFFFFF')
meta	object	A meta object which determines the values of non-visual properties of the feature.	No

style.defines

A dictionary object of expression strings mapped to a variable name key that may be referenced throughout the style. If an expression references a defined variable, it is replaced with the evaluated result of the corresponding expression.

• Type: object
• Required: No
• Type of each property: string

style.show

A boolean expression or conditions property which determines if a feature should be shown.

• Type: boolean, string, object
• Required: No, default: true

style.color

A color expression or conditions property which determines the color blended with the feature's intrinsic color.

• Type: string, object
• Required: No, default: color('#FFFFFF')

style.meta

A meta object which determines the values of non-visual properties of the feature.

• Type: object
• Required: No
• Type of each property: string

---

boolean expression

A boolean or string with a 3D Tiles style expression that evaluates to a boolean. See Expressions.

• JSON schema: style.booleanExpression.schema.json

---

color expression

3D Tiles style expression that evaluates to a Color. See Expressions.

• JSON schema: style.colorExpression.schema.json

---

conditions

A series of conditions evaluated in order, like a series of if...else statements that result in an expression being evaluated.

Properties

	Type	Description	Required
conditions	array []	A series of boolean conditions evaluated in order. For the first one that evaluates to true, its value, the 'result' (which is also an expression), is evaluated and returned. Result expressions must all be the same type. If no condition evaluates to true, the result is undefined. When conditions is undefined, null, or an empty object, the result is undefined.	No

conditions.conditions

A series of boolean conditions evaluated in order. For the first one that evaluates to true, its value, the 'result' (which is also an expression), is evaluated and returned. Result expressions must all be the same type. If no condition evaluates to true, the result is undefined. When conditions is undefined, null, or an empty object, the result is undefined.

• Type: array []
• Required: No

---

condition

An expression evaluated as the result of a condition being true. An array of two expressions. If the first expression is evaluated and the result is true, then the second expression is evaluated and returned as the result of the condition.

• JSON schema: style.conditions.condition.schema.json

---

expression

A valid 3D Tiles style expression. See Expressions.

• JSON schema: style.expression.schema.json

---

meta

A series of property names and the expression to evaluate for the value of that property.

Additional properties are allowed.

• Type of each property: expression

---

number expression

3D Tiles style expression that evaluates to a number. See Expressions.

• JSON schema: style.numberExpression.schema.json

---

Point Cloud Style

A 3D Tiles style with additional properties for Point Clouds.

Properties

	Type	Description	Required
defines	object	A dictionary object of expression strings mapped to a variable name key that may be referenced throughout the style. If an expression references a defined variable, it is replaced with the evaluated result of the corresponding expression.	No
show	boolean, string, object	A boolean expression or conditions property which determines if a feature should be shown.	No, default: true
color	string, object	A color expression or conditions property which determines the color blended with the feature's intrinsic color.	No, default: color('#FFFFFF')
meta	object	A meta object which determines the values of non-visual properties of the feature.	No
pointSize	number, string, object	A number expression or conditions property which determines the size of the points in pixels.	No, default: 1

PointCloudStyle.defines

A dictionary object of expression strings mapped to a variable name key that may be referenced throughout the style. If an expression references a defined variable, it is replaced with the evaluated result of the corresponding expression.

• Type: object
• Required: No
• Type of each property: string

PointCloudStyle.show

A boolean expression or conditions property which determines if a feature should be shown.

• Type: boolean, string, object
• Required: No, default: true

PointCloudStyle.color

A color expression or conditions property which determines the color blended with the feature's intrinsic color.

• Type: string, object
• Required: No, default: color('#FFFFFF')

PointCloudStyle.meta

A meta object which determines the values of non-visual properties of the feature.

• Type: object
• Required: No
• Type of each property: string

PointCloudStyle.pointSize

A number expression or conditions property which determines the size of the points in pixels.

• Type: number, string, object
• Required: No, default: 1
